Air drying machine

Production description
The air dryer uses a large air volume and low noise fan to dry naturally. The air dryer is designed to be turned over and conveyed multiple times, and has a reverse and reverse air device to prevent dead ends of drying, and the drying effect of the air dryer is good. This machine is suitable for dewatering of food after sterilization, and it is also suitable for the removal of surface water after washing vegetables. By turning over and draining water several times, and blowing with high-pressure and strong cold air on the upper part, the surface of the material can be completely dried by water droplets (the water stored between the wrinkles can also be dried).
1.With big air volume centrifugal turbofan, and small sharp air outlet, enable quick drying

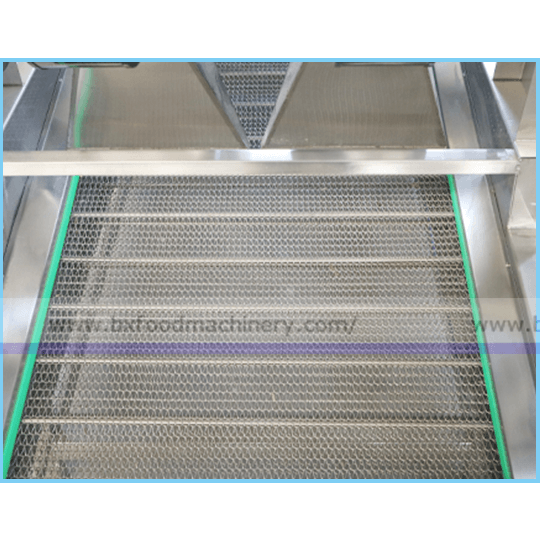

2.With SUS 304 mesh belt, mesh belt width could be 500-1000mm
3.Mesh speed adjustable by gearbox
4.With turnover type or flat type mesh belt, suitable for different products drying
5.Each unit of blowing fan can be controlled separately
6.Suitable for production line, continuously working

Details

Parameter

Model	Power	Weight	Overall size	Capacity
BXFG-100	3.75kw	700kg	2500x500x1600mm	100kg/h
BXFG-400	7.1kw	720kg	3500x1000x1600mm	400kg/h
BXFG-1000	15kw	900kg	7000x1200x1600mm	1000kg/h
Please contact us for more options!
